plastic laser welding machine-13

Precision Laser Welding

Home >  Products >  Laser Welding Machine >  Precision Laser Welding

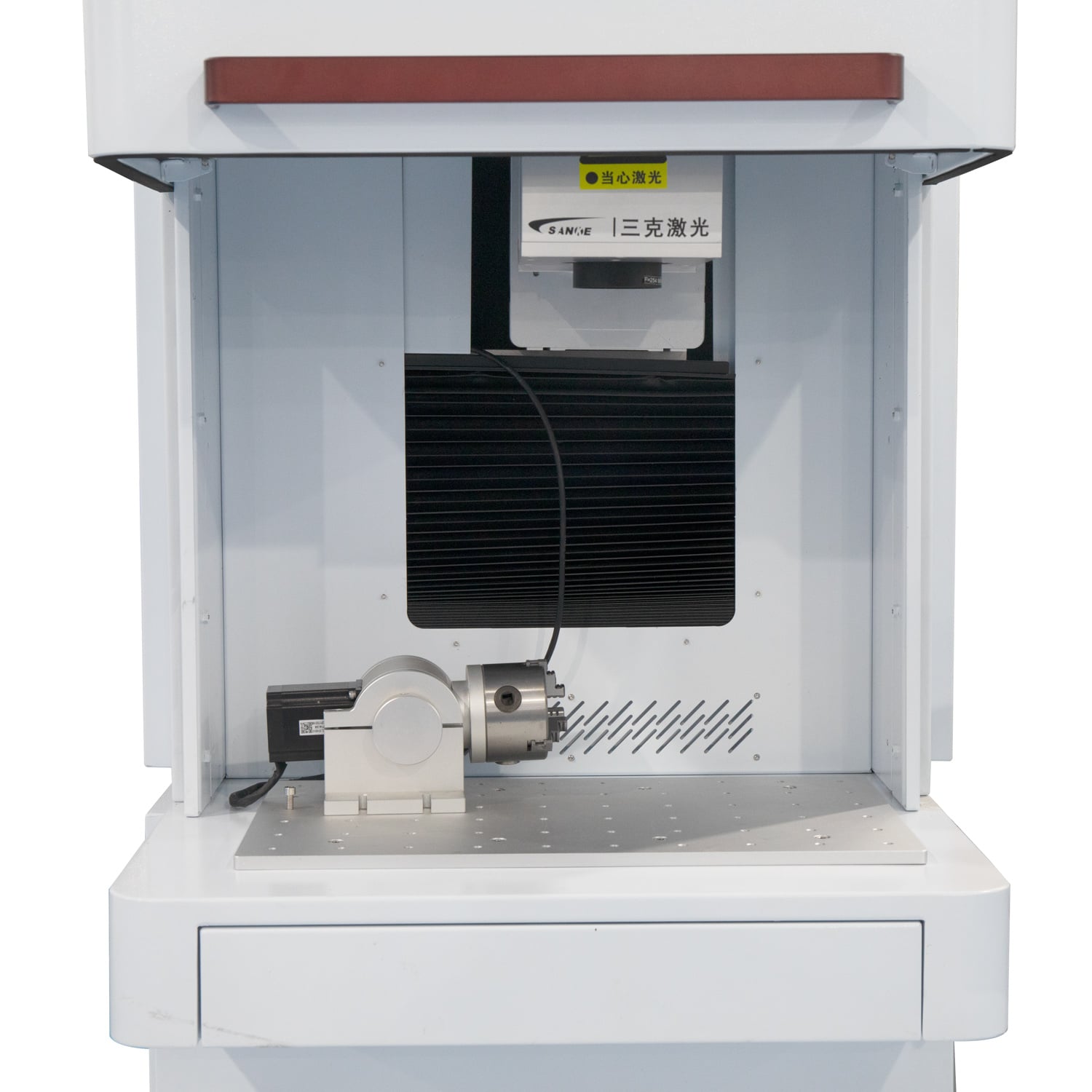

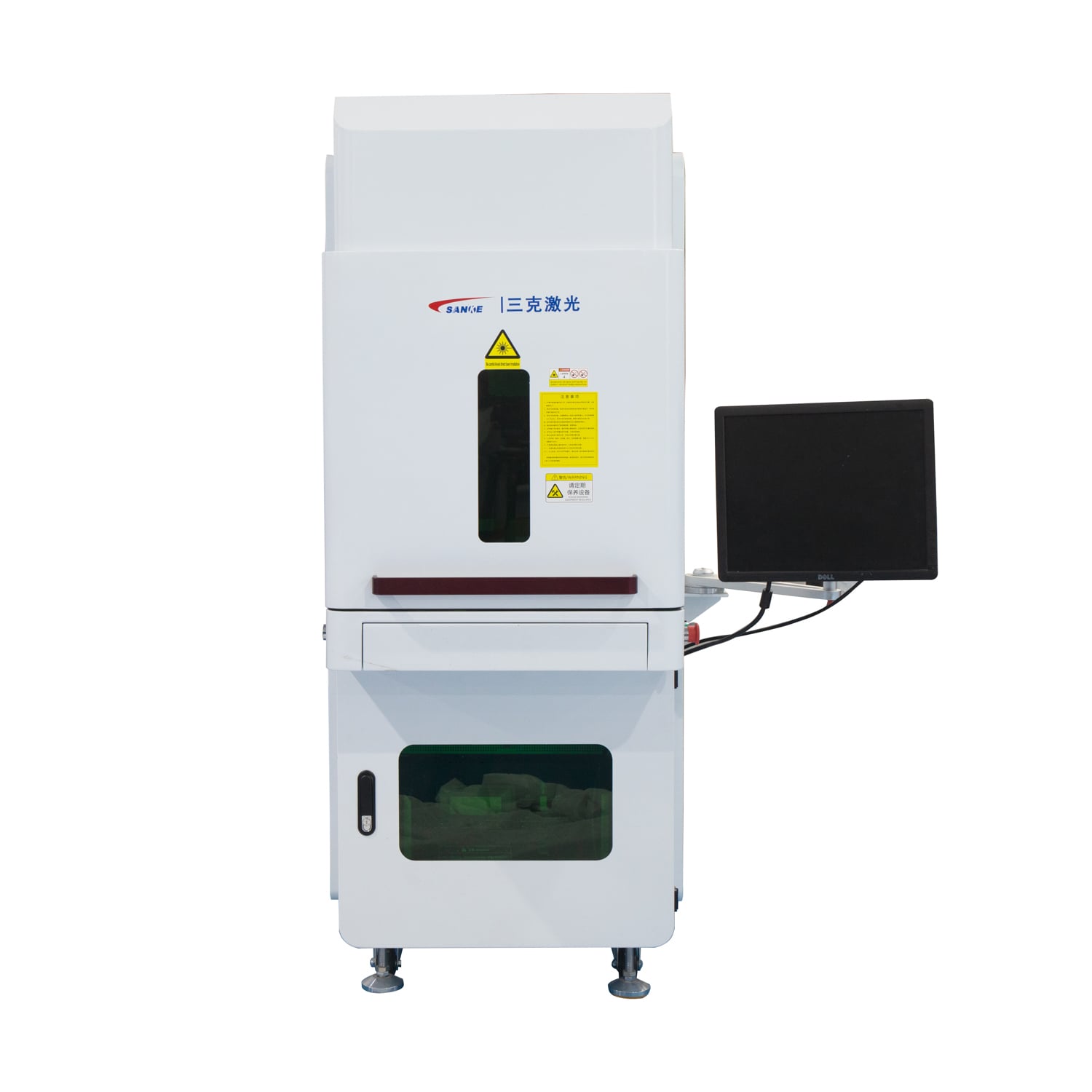

Plastic Laser Welding Machine

This machine is mainly composed of a dedicated laser welding head,four-axis motion control software, and a three-axis robot module;it adopts a fully enclosed laser radiation protection integrated design; it has continuous trajectory teaching and remo...

Introduction

This machine is mainly composed of a dedicated laser welding head,four-axis motion control software, and a three-axis robot module;it adopts a fully enclosed laser radiation protection integrated design; it has continuous trajectory teaching and remote control functions,and can be added with coaxial temperature control The system reliably identifies any abnormalities in the welding line and welding temperature.



•shallow welding area and exquisite appearance;
•Suitable for welding complex products and 3D parts
•Online monitoring can be carried out through CCD vision system and temperature probe;
•No resin degradation during welding, and it can be used directly after welding without cleaning



Widely used in medical equipment,plastic casings, automotive plastic parts, solar panels, lighting products, intake manifolds or liquid containers and other workpieces.
It is suitable for ABS, PP, PE, PA, PC, PS, PVC, PBT, POM, PET, PMMA and other thermoplastic materials and various modified engineering plastics.



Performance/model SK-PLW50 SK-PLW100 SK-PLW200 SK-PLW400
Max.laser power 50W 100W 200w 400W
Wavelength 800-1000nm
Cooling Air Water
Positioning accuracy X/Y/Z: ≤0.05mm; U: ≤0.10
Movement speed X/Y/Z: 100mm/s; U: 100rpm
Welding line width 0.5-3.0mm
Power supply AC220V±10%/1PH/50Hz
Machine size(L*W*H) 1250*700*1700mm
Machine weight 250Kg
